Description
The UMT162 is a universal measurement and processing module used with the AVRBM application in ALSPA P320 AVR systems. It synchronously acquires six analogue signals, converts and processes them according to its EEPROM configuration and makes the resulting stator-voltage, stator-current, power, power-factor and frequency values available to the controller.

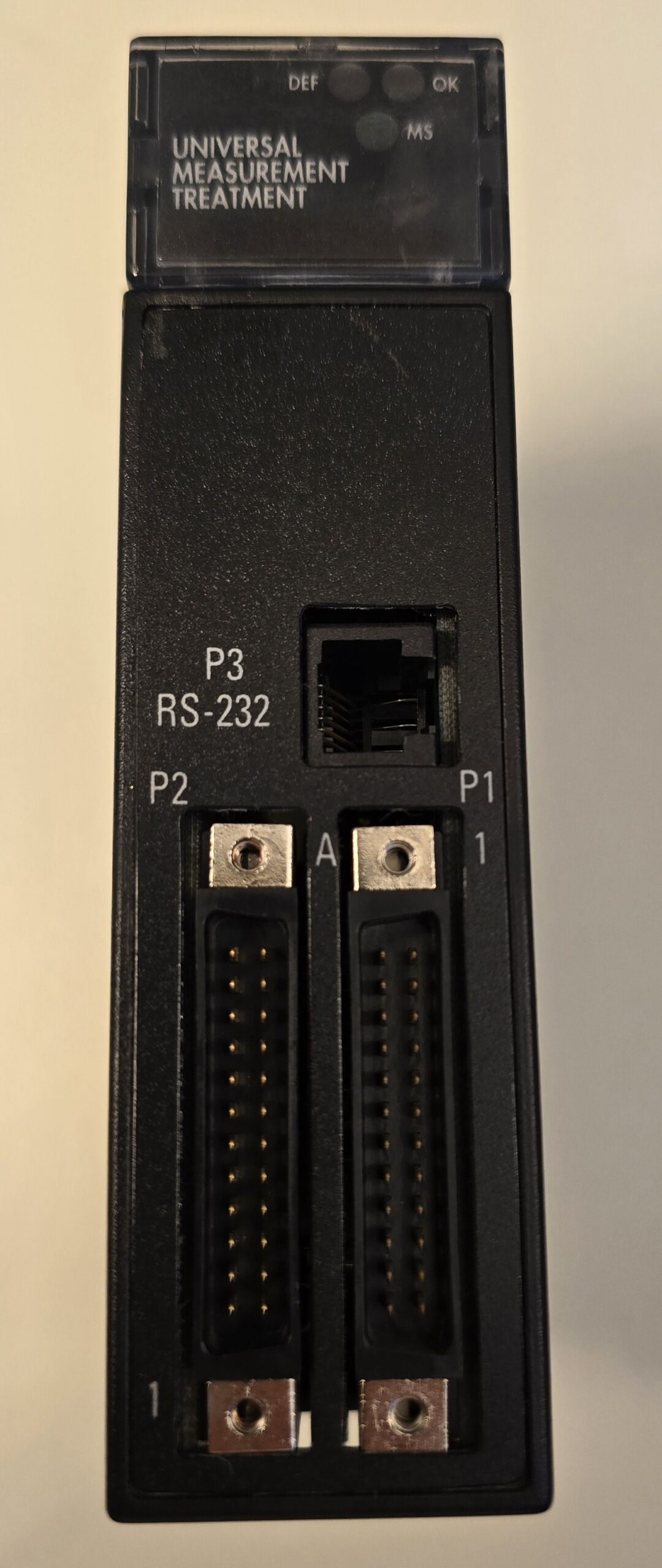

The module provides six ±10 V analogue inputs with 14-bit conversion, four 24 VDC logic inputs, four 0–10 V analogue outputs with 8-bit conversion and two 24 V open-collector outputs. It occupies one C80-35 bus slot, supports master or slave operation and includes an RS-232 service interface and front-panel status indicators.
Please check compatibility with the installed hardware and system configuration before ordering.
Firmware

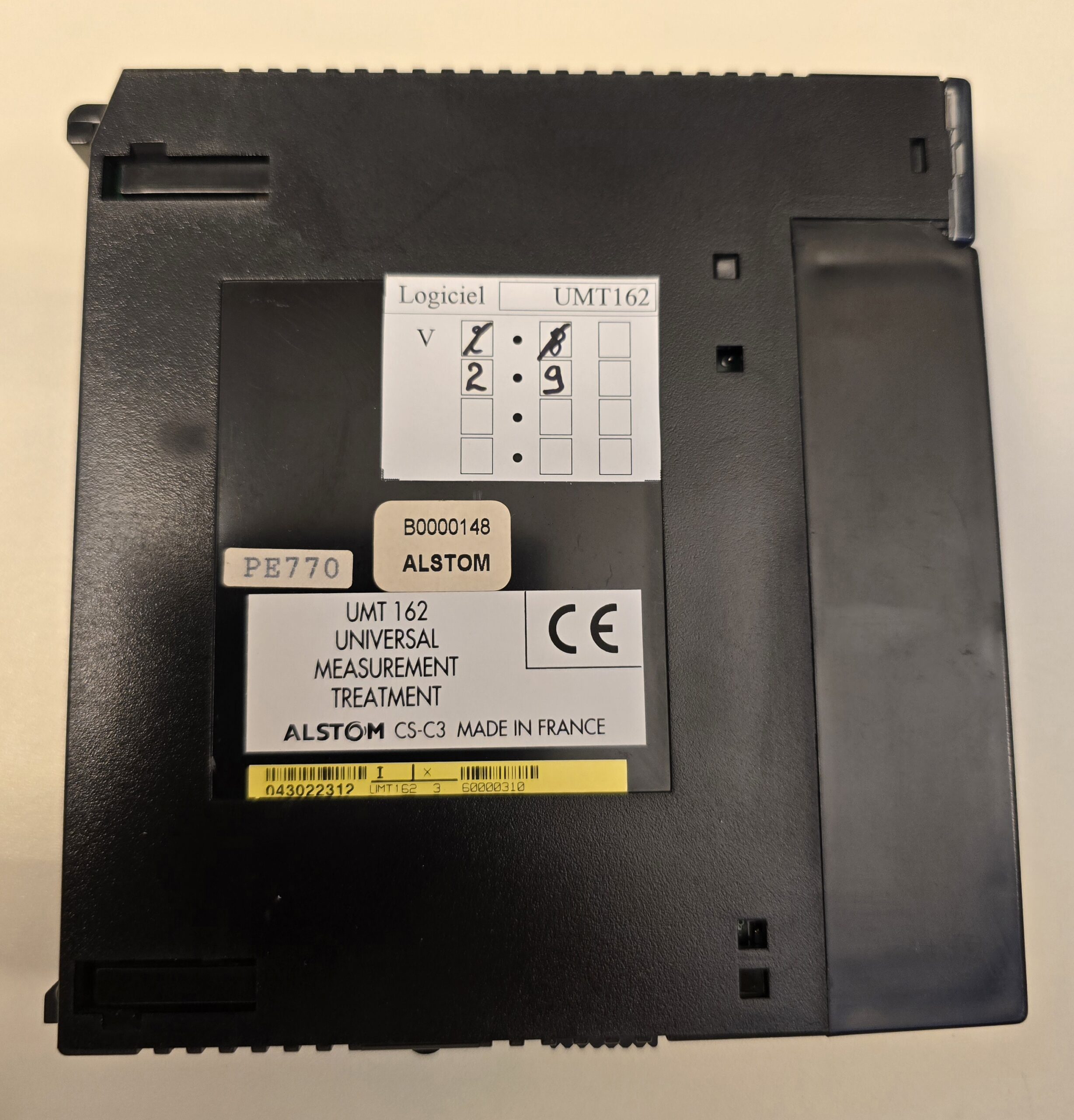

Available firmware files: 2.7; 2.8; 2.9.
Please specify the firmware version currently in use when requesting a quotation, so we can confirm compatibility and supply the appropriate version.
