Description

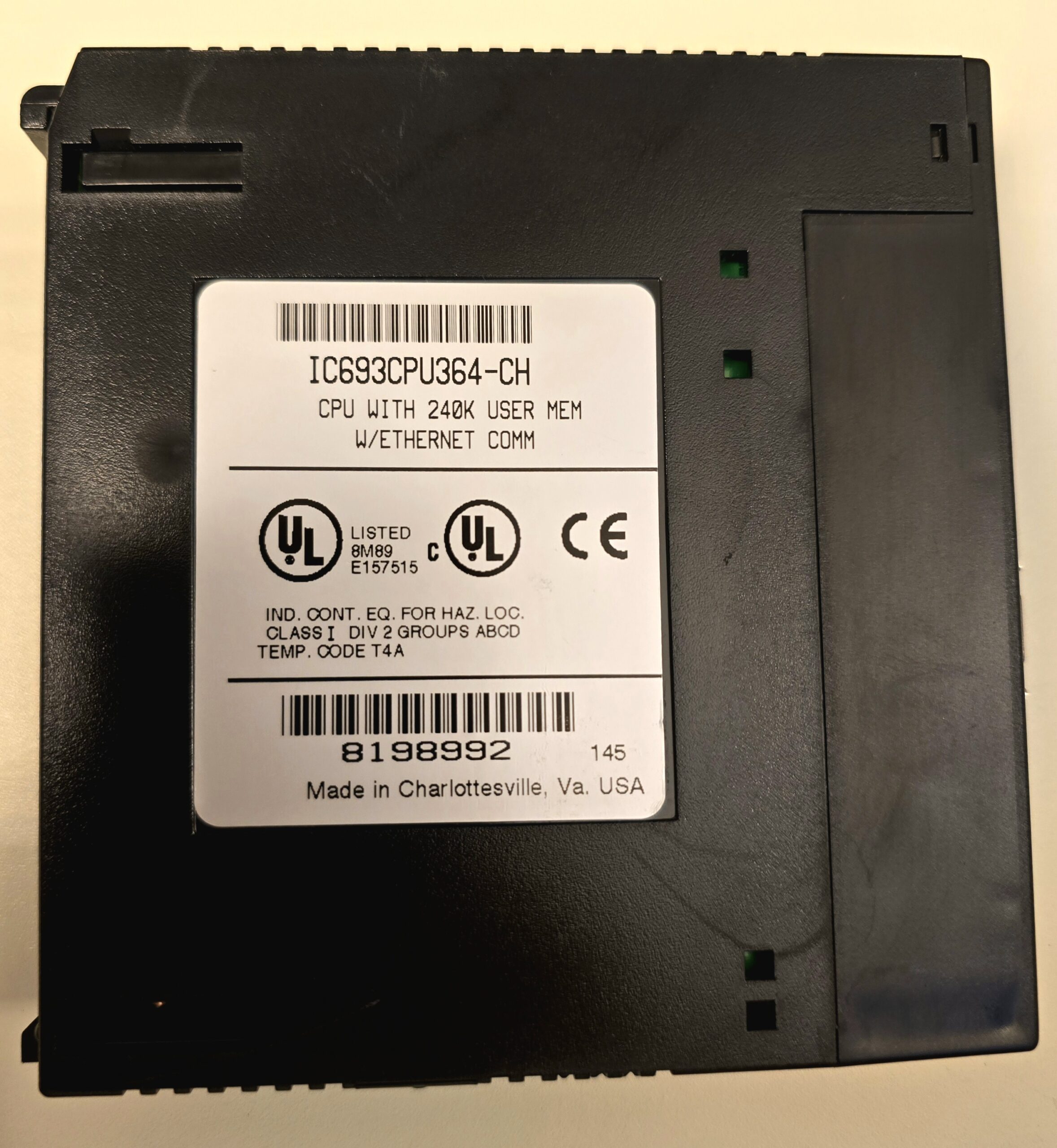

The IC693CPU364 is a single-slot, 25 MHz 80386EX-based CPU for the ALSPA C80-35 with an integrated Ethernet interface. It provides 240 KB of user memory using RAM and Flash storage and achieves a typical scan rate of 0.22 ms per 1,000 Boolean contacts.

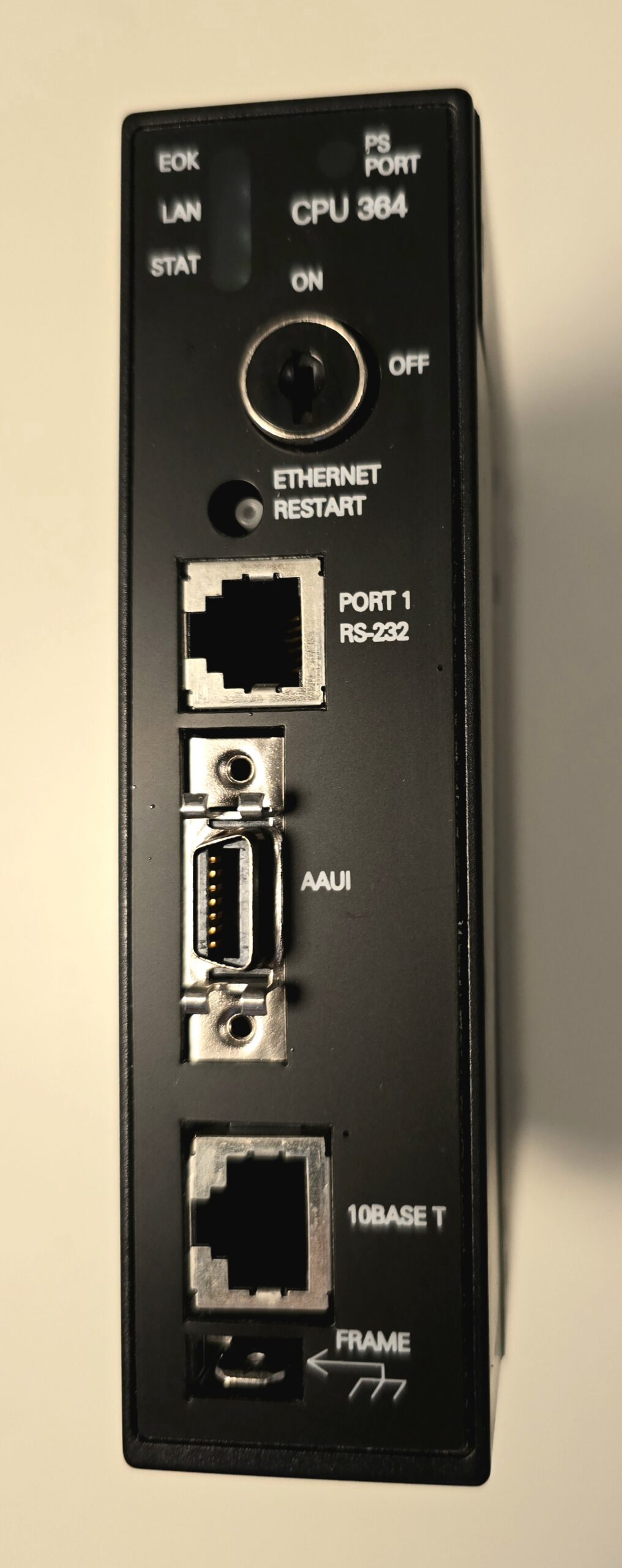

Ethernet connection is available through either the direct 10BASE-T port or the AAUI port with an external transceiver; the two Ethernet ports cannot be used simultaneously. Network communications use SRTP over TCP/IP. The front RS-232 service interface supports configuration, monitoring and firmware loading, while SNP and SNP-X controller communications use the RS-485 connector on the PLC power supply. The CPU supports up to eight baseplates in total.
Please check compatibility with the installed hardware and system configuration before ordering.
Firmware
Available firmware files: EEM R2.0.1040; R2.1.1150; R2.4.5091; CPU packages present.
Please specify the firmware version currently in use when requesting a quotation, so we can confirm compatibility and supply the appropriate version.
