Description

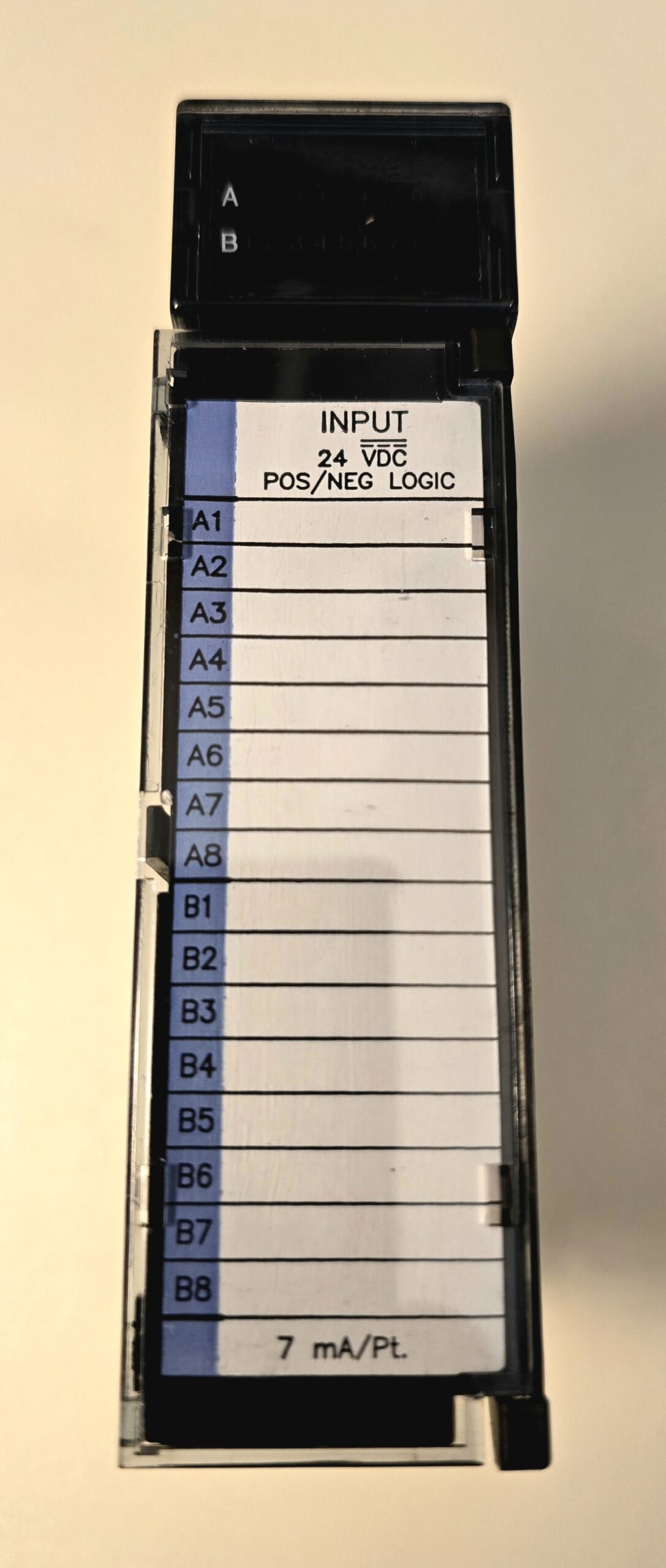

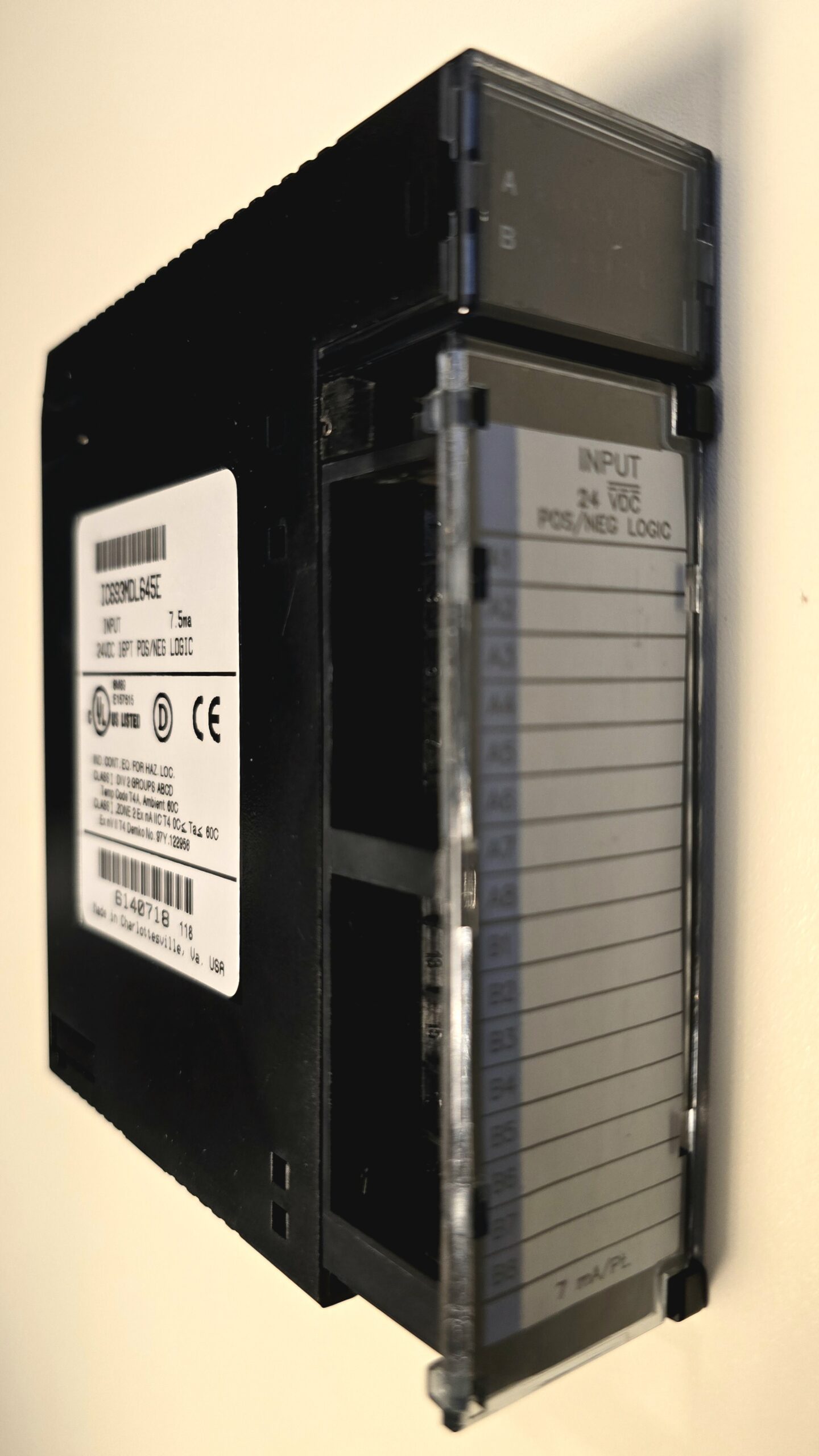

The IC693MDL645 is a 16-point, 24 VDC positive/negative-logic input module for the ALSPA C80-35 or Rx3i. The inputs are arranged in one group with a single common and accept signals from 0 to 30 VDC. Guaranteed ON and OFF ranges are 11.5 to 30 VDC and 0 to 5 VDC respectively, with a typical input current of 7 mA at 24 VDC and a typical response time of 7 ms.
The module provides 1500 V isolation between the field and logic sides and an individual status LED for each input. Field devices can be powered from an external supply or, within its capacity limits, from the isolated 24 VDC supply provided by the PLC power supply.
Please check compatibility with the installed hardware and system configuration before ordering.
