Description

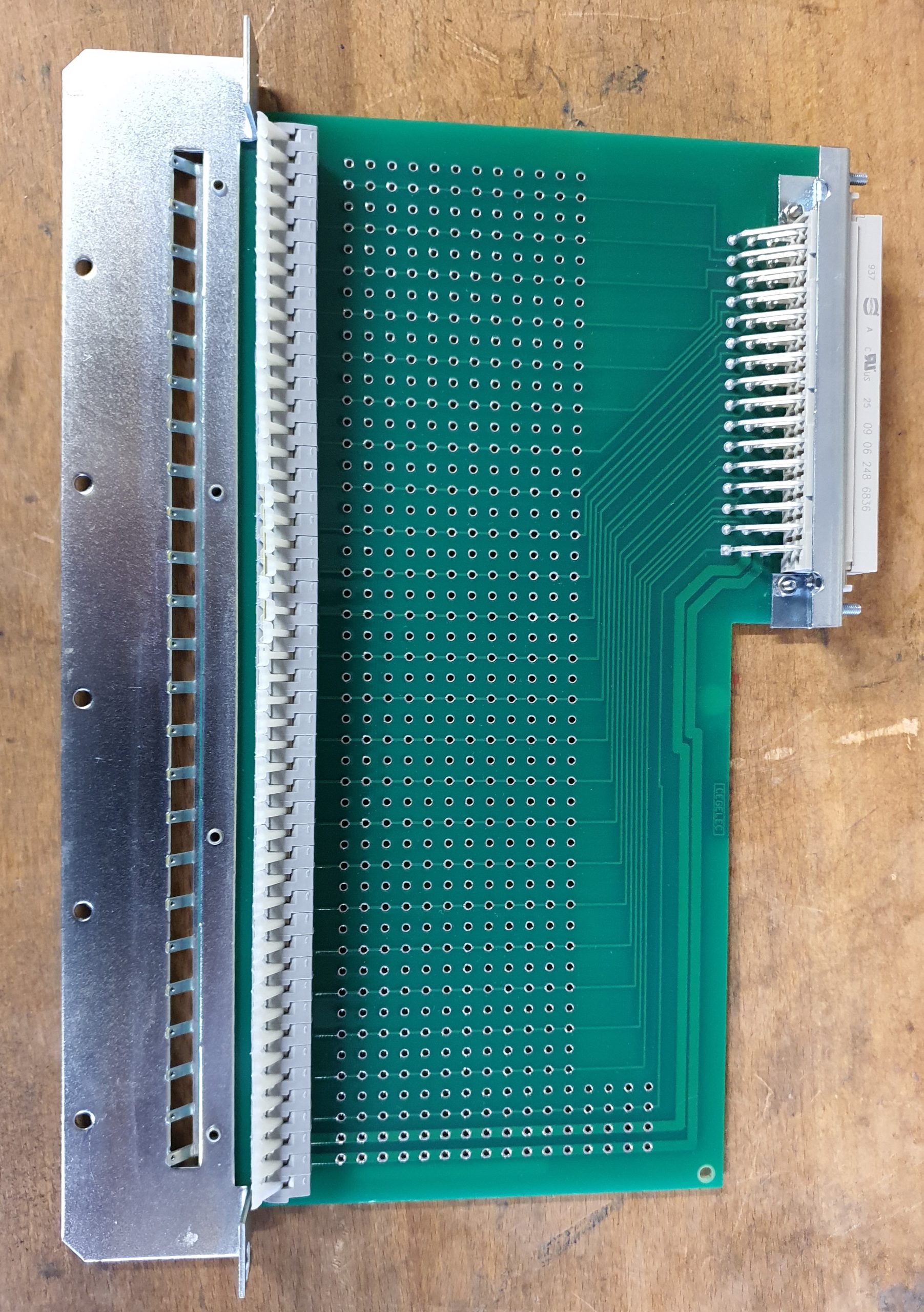

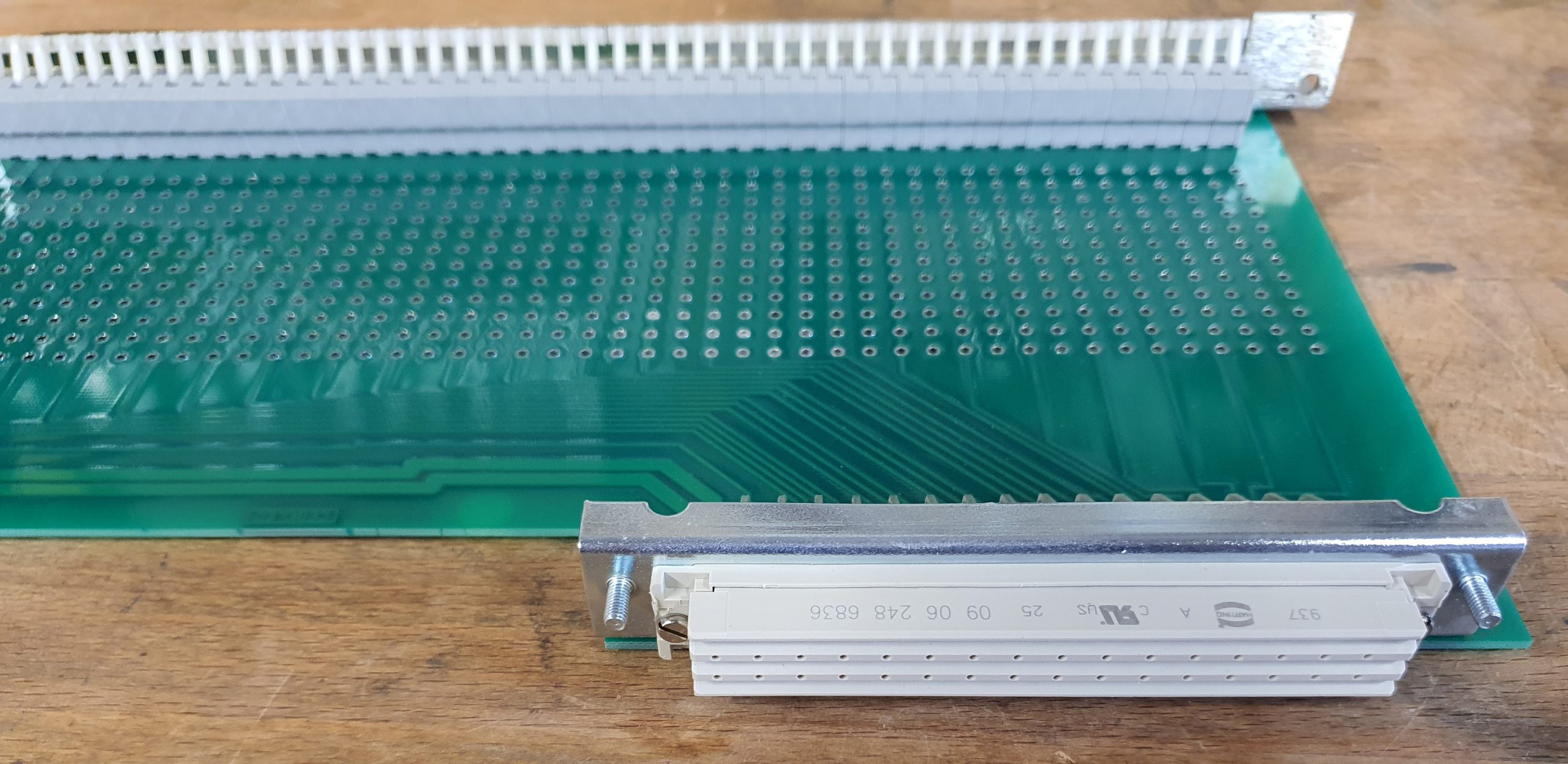

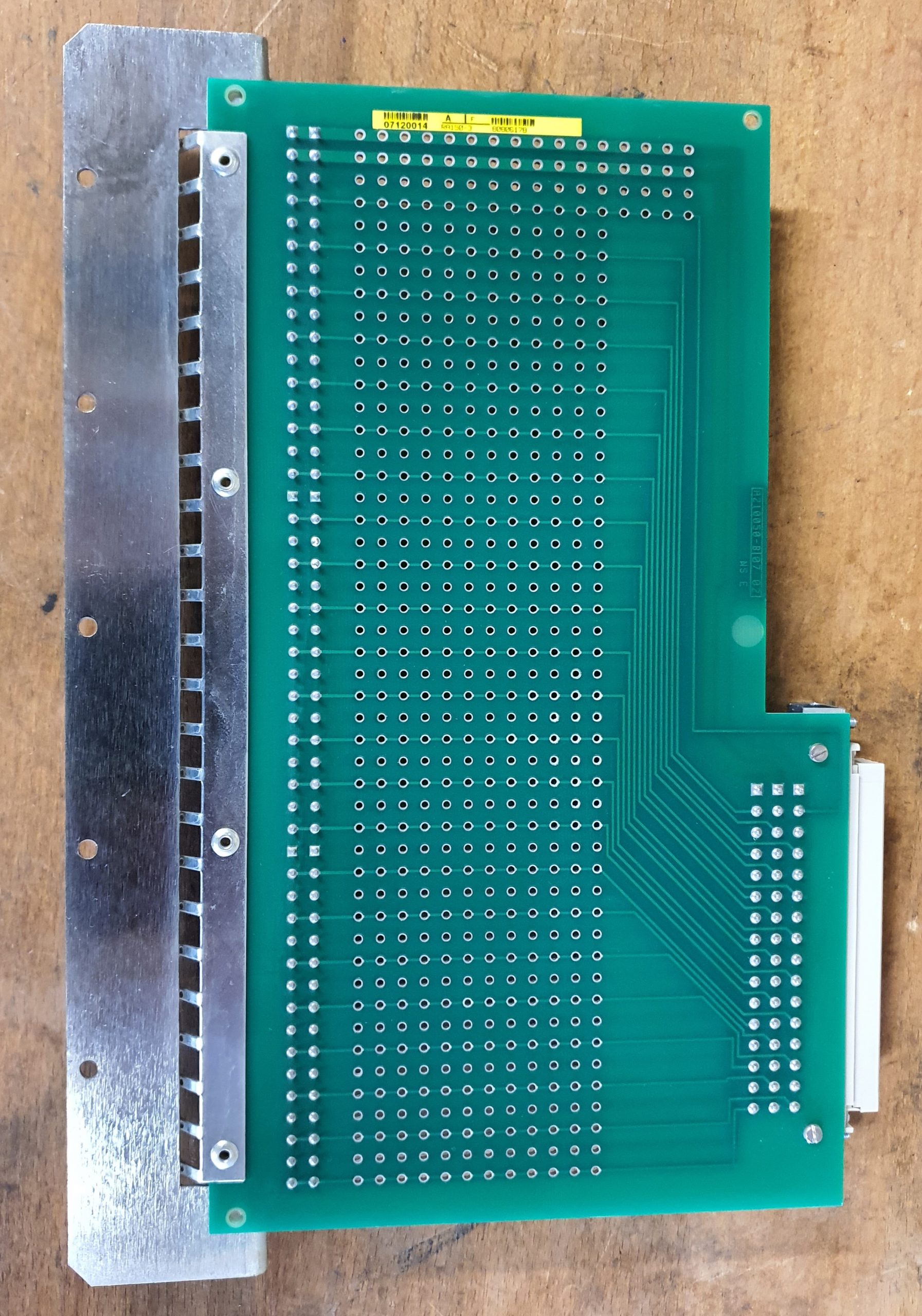

The RA150-3 is a rear-access process-wiring adapter for CE2000 and compatible CE3000 racks, notably the AM166. It mates with the rear 48-pin DIN connector of the associated I/O module and transfers the process wiring to an accessible terminal strip.

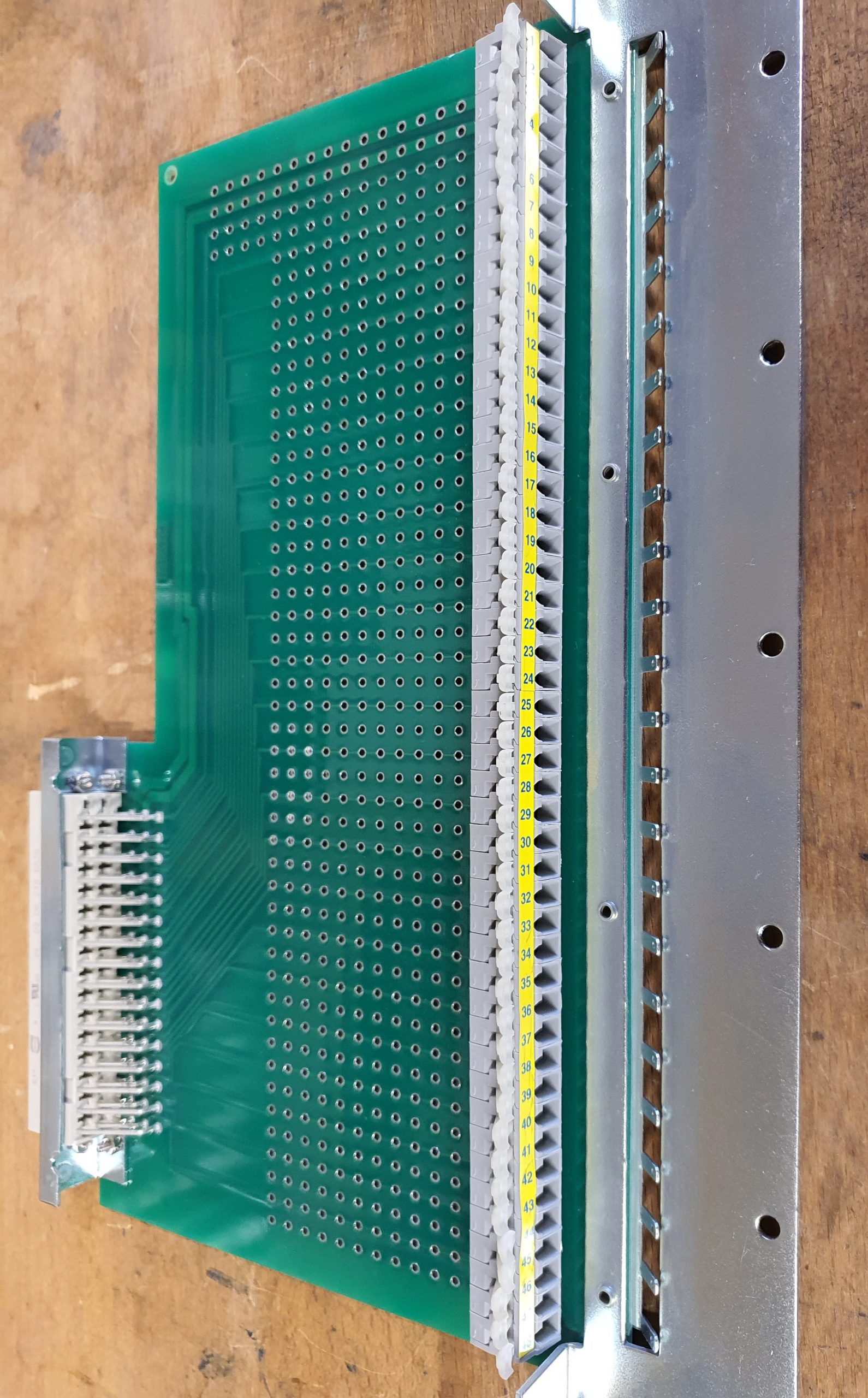

This version uses spring-clamp terminals for conductors with a cross-section below 2.5 mm². Its nominal envelope is 284 mm high, 110 mm deep and 25.4 mm thick.
Please check compatibility with the installed hardware and system configuration before ordering.
