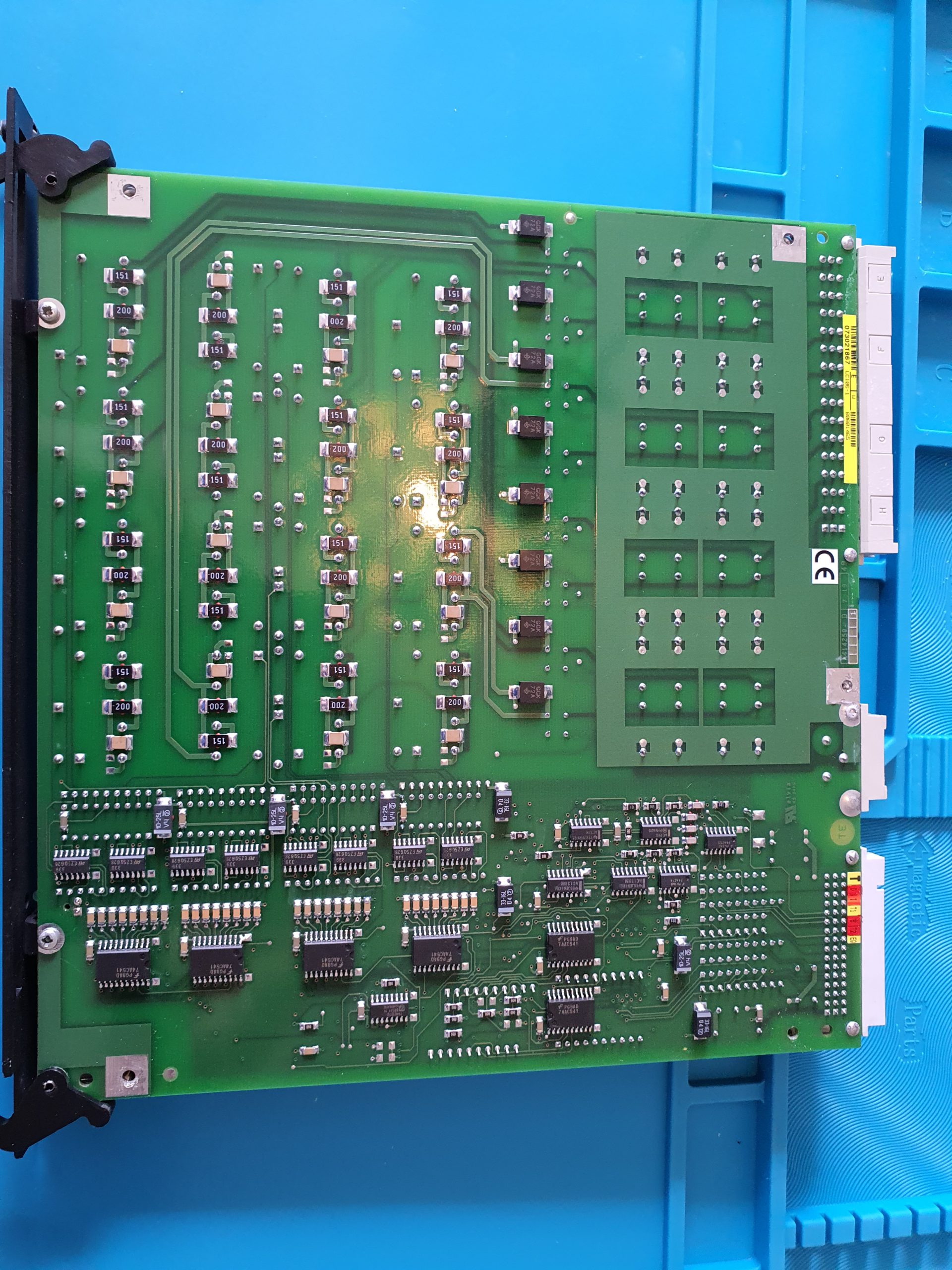

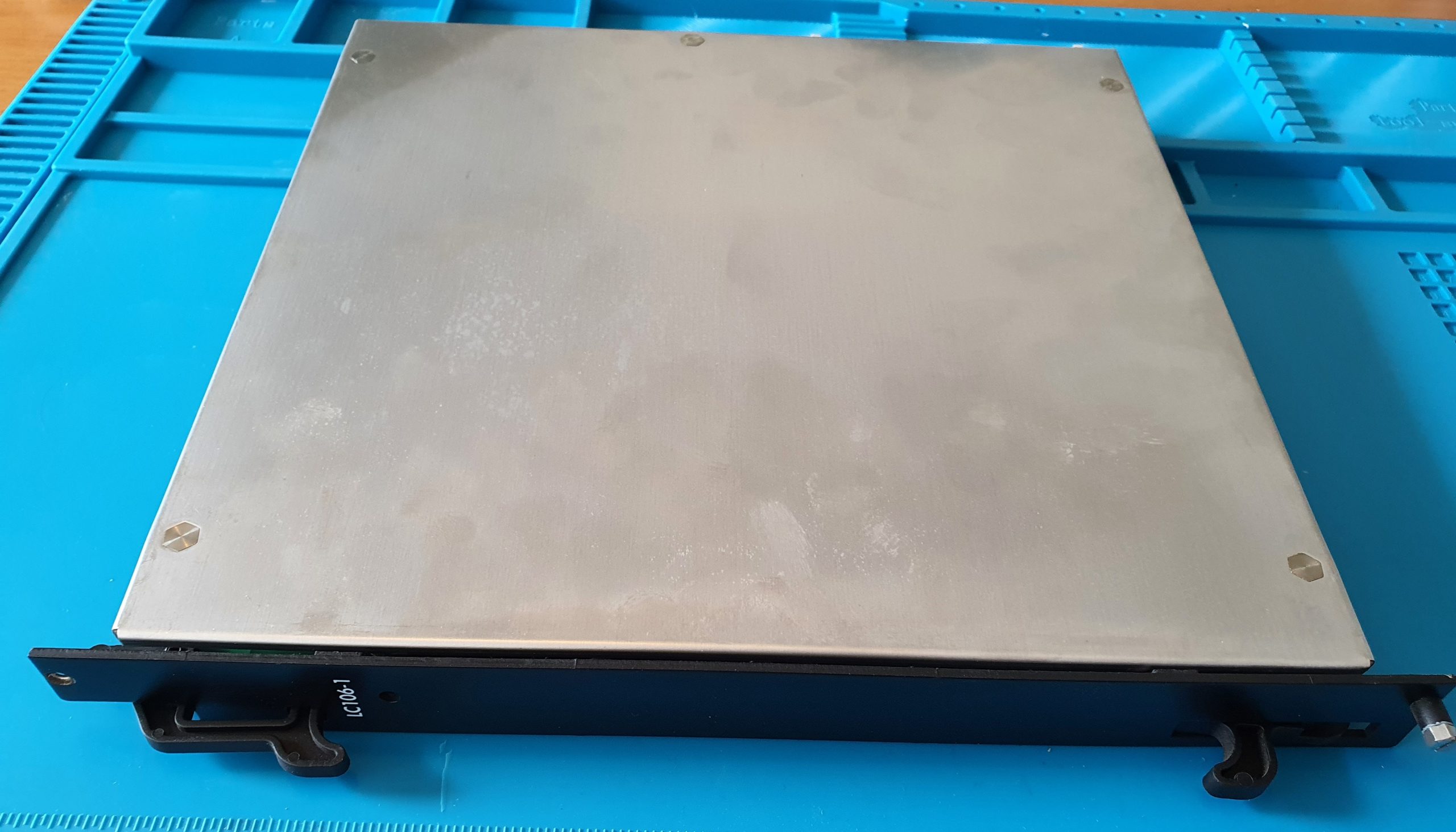

LC106-1 (C0200800)
1426,00€
16 nonpolarized outputs module (24 / 48 VDC)
For CE2000 & CE3000 controllers
Refurbished part, tested on Alspa test bench.
Supplied with test certificate and 3-years warranty.
Alstom code: C0200800
In stock
Description
The LC106-1 is a logic restitution module which provides 16 nonpolarized normally open contacts (24 / 48 V DC).

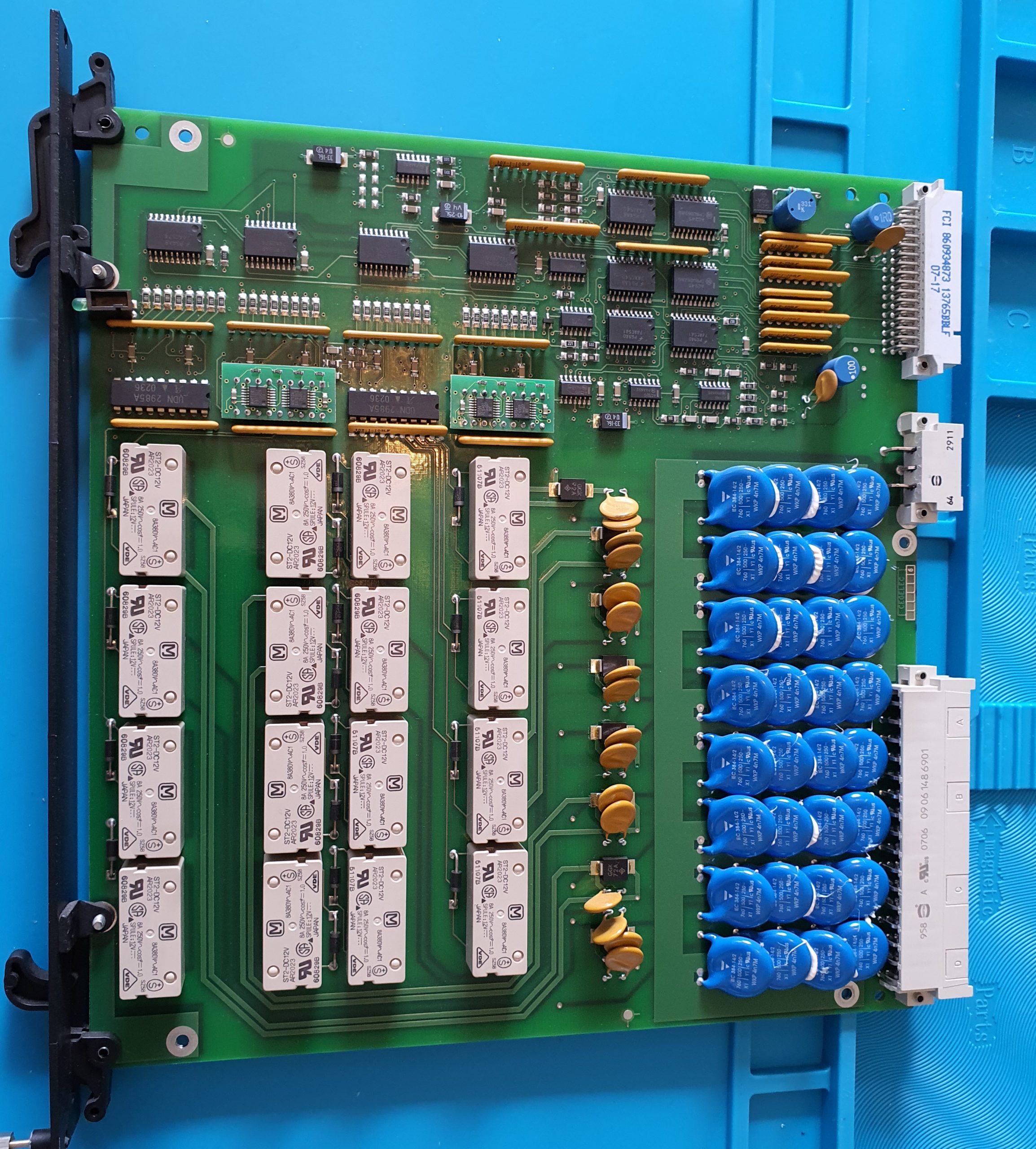

The module includes 16 logic outputs based on mono-stable relays with normally open contacts. The control of each coil is based on 2 transistors, the first one provides +12 V and the second one provides 0 V. These transistors controls are isolated and complemented, thus, the risk of unwanted outputs is very small. An over-amperage protection is series mounted with each contact. A contact or overvoltage protection is parallel mounted to reduce switching arcs.
LC106-1 module performs the following tests:
– Testing of the 2 control channels of the relay coils.
– General watchdog.
– Individual watchdog.
Additional information
| Weight | 1 kg |
|---|---|
| Dimensions | 26,5 × 2,6 × 26,5 cm |
