IC697CPX928-FE
Central Processing Unit IC697CPX928-FE for Alspa C80-75 PLC
Refurbished part, tested on Alspa test bench.
Supplied with test certificate and 2-years warranty.
Alstom code: C0404150

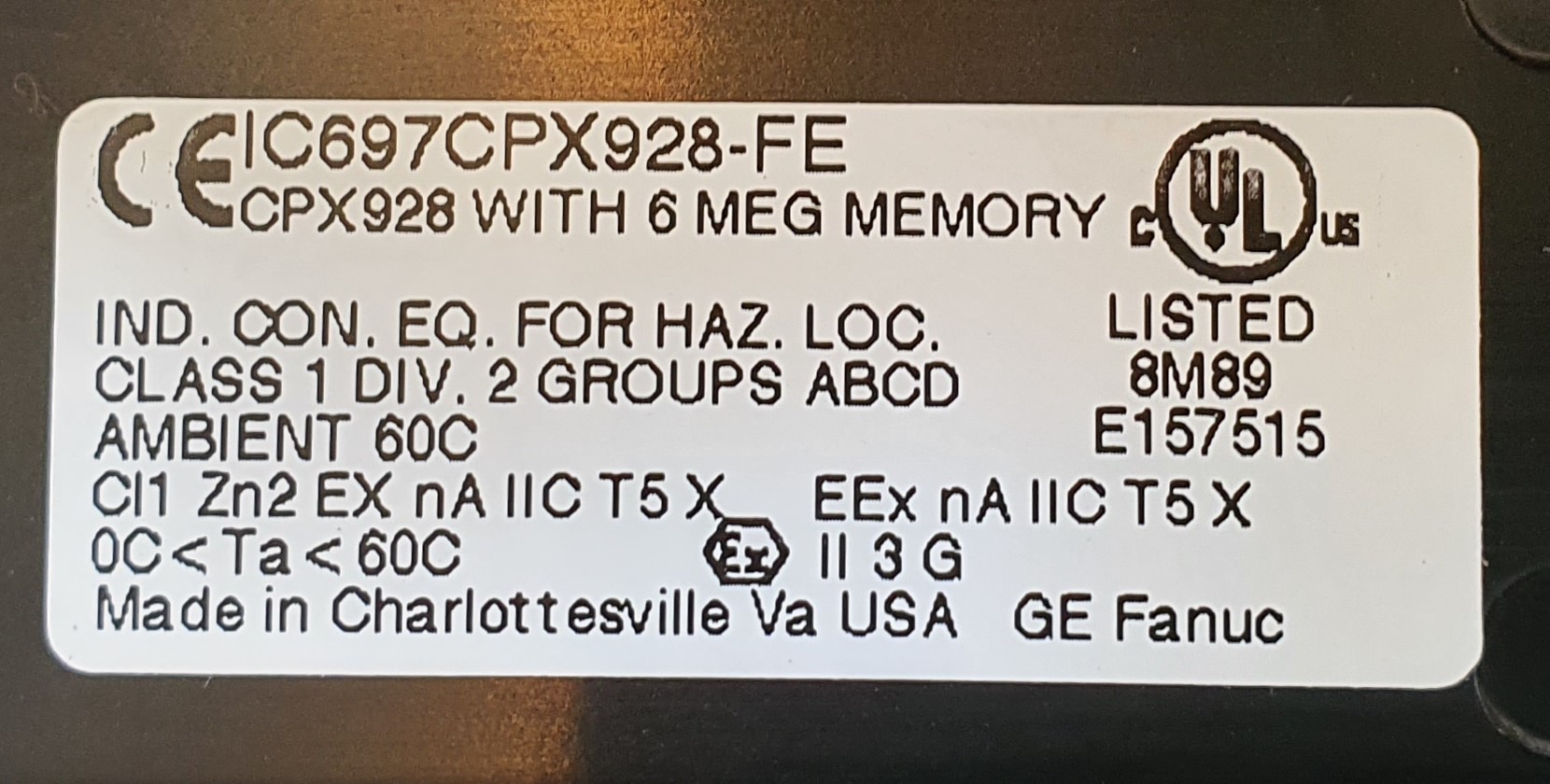

Markings: IC697CPX928-FE
In stock
Description
The CPX 928 is a single slot CPU for the C80-75 MFC that is programmed and configured by Windows based programming software to perform real time control of machines, processes, and material handling systems. It communicates with I/O and smart option modules over a rack mounted backplane using the VME C.1 Standard format.
FE hardware revision include modified clock circuit to avoid CPU crash due to “unexpected interrupt” fault.
Firmware version: R8.11 (solving Floating-Point Math Errors when the microcycle base scan is shorter than the PLC sweep time). Other versions available on request.
Additional information
| Weight | 0,85 kg |
|---|---|
| Dimensions | 29 × 22 × 4 cm |
